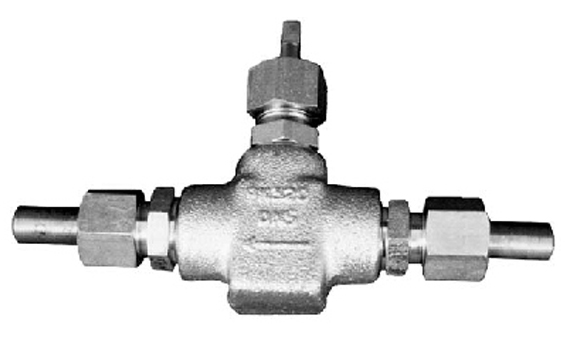

Egyutú szelep
Tip: MEZ-12-00

Manifold's name: Single-way straight manifold
Manifold's type: MEZ-12-00; MEZ-12-01; MEZ-12-03/
Nominal diameter [mm]: DN 5; DN 5; DN 5
Nominal pressure [MPa]: 32; 32; 32
Test pressure [MPa]: 45; 45; 45
The highest operating temperature [oC]: 400; 250; 200
Manifold's material: steel 15HM; 1H18N9T; 1H18N9T
Manifold's sealing material: graphite; graphite; tarflen
Manifold versions: N - standard; O - for oxygen; K - acidproof
Mass: 1.5 kg
