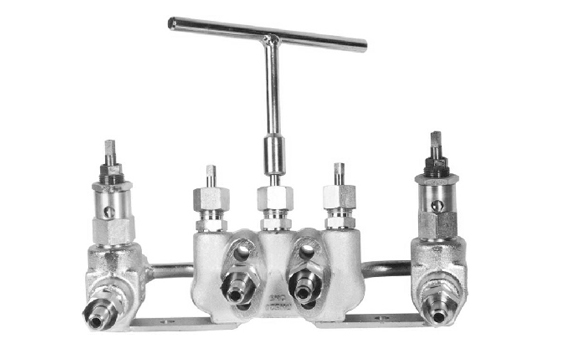

Blokkszelep
Tip: MEZ-14-00

Manifold's name: Blocked manifold
Manifold's type: MEZ-14-00/...1; MEZ-14-00/...2
Nominal diameter [mm]: DN 5, DN 8; DN 5, DN 8
Nominal pressure [MPa]: 32; 32
Test pressure [MPa]: 45; 45
The highest operating temperature [oC]: 400; 520
Manifold's material: steel 15HM; 15HM
Manifold's sealing material: graphite; graphite
Manifold versions: N - standard; O - for oxygen; K - acidproof
Mass: 7 kg; 8kg
