Blokkszelep

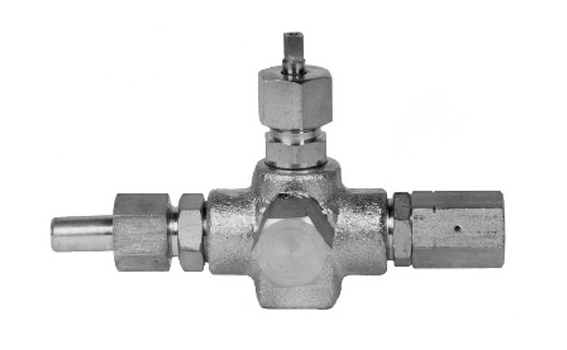

Tip: MEZ-15-00

Manifold's type: MEZ-15-00; MEZ-15.1-00; MEZ-15-01; MEZ-15.1-01; MEZ-15-03; MEZ-15.1-03
Nominal diameter [mm]: DN 5, DN 5; DN 5, DN 5
Nominal pressure [MPa]: 32; 32; 32
Test pressure [MPa]: 45; 45; 45
The highest operating temperature [°C]: 400; 250; 200
Manifold's material: steel 15HM; steel 1H18N9T; steel 1H18N9T
Manifold's sealing material: graphite; graphite; tarflen
Manifold versions: N - standard; O - for oxygen; K - acidproof
Mass: 1,5 kg; 1,8kg
