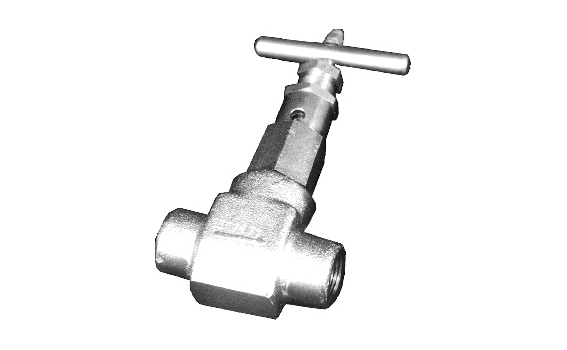

Drain manifold
Tip: MEZ-16-00
Manifold's type: MEZ-16-00
Nominal diameter [mm]: DN 10
Nominal pressure [MPa]: 4
Test pressure [MPa]: 6
The highest operating temperature [°C]: 400
Manifold's material: steel 15HM
Manifold's sealing material: graphite
Manifold versions:
N - standard;
O - for oxygen;
K - acidproof
Mass: 2,5 kg
