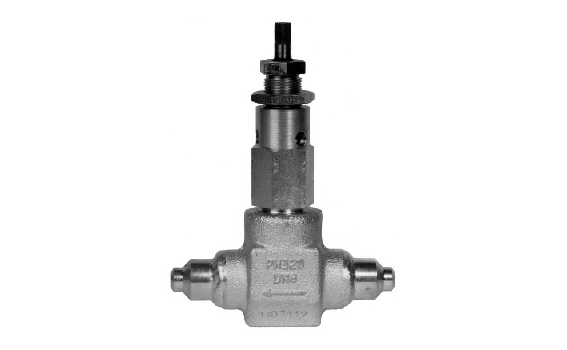

Single-way first cut-off manifold
Tip: MEZ-17-00

Manifold's type: MEZ-17-00; MEZ-17-02
Nominal diameter [mm]: DN 8; DN8
Nominal pressure [MPa]: 42; 50
Test pressure [MPa]: 56; 70
The highest operating temperature [°C]: 520; 560
Manifold's material: steel 15HM; 13HMF
Manifold's sealing material: graphite; graphite
Manifold versions:N; N
(N - standard; O - for oxygen; K - acidproof)
Mass: 2,5 kg
