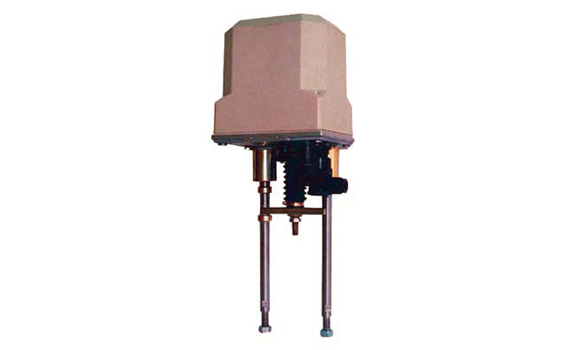

Tip: ESL-03

THE ELECTRIC LINEAR ACTUATORS TYPE ESL-03- (CONSTANT SPEED) ARE
DESIGNED FOR DRIVING OF CONTROL CLOSING COMPONENTS AND OTHER
DEVICES IN CONTROL SYSTEM IN AIR CONDITIONING AND HEAT ENGINEERING.

TECHNICAL DATA
- power supply: 230V +10%, -15%, f=50Hz
- rated force: 2…8kN
- linear velocity: (positioning speed) 16; 25 or 40mm/min
- travel: 20; 25 or 40mm
- ambient temperature during operation: -25°C…+55°C
- protection degree: IP54 acc. to PN-EN60259 : 2002(U)
- duty type: S2 - 15min and S4 - 25%, 630c/h acc. to PN-92/M-42011
- mass: ~8kg

MICROSWITCHES: Type: 83.133. 54ER14.1
- rated power supply: 250V, 50…60Hz or 30V DC
- rated switching current: 2.5A
- rated thermal current: 11A
- minimal switching voltage: 10V
- minimal switching current: 20mA
