Elektroautomatika Ipari és Kereskedelmi Kft.

Hajtóművek

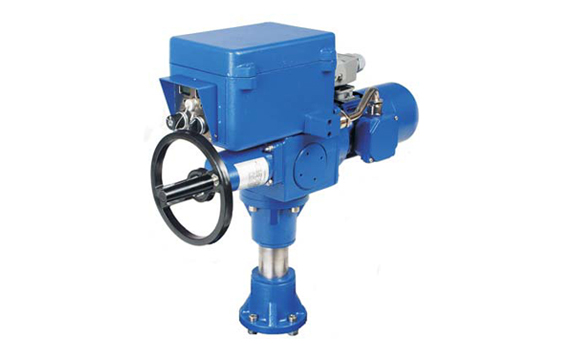

Tip: ESL-18

ELECTRIC LINEAR ACTUATORS type ESL-18- (CONSTANT-SPEED) ARE DESIGNED FOR DRIVING OF CONTROL CLOSING COMPONENTS AND OTHER DEVICES, WHEREIN MEDIUM FORCES AND DISPLACEMENTS ARE REQUIRED. THEY MAY BE USED AS FINAL CONTROL ELEMENTS IN REGULATING AND CONTROL SYSTEMS OF CONTINUOUS TECHNOLOGICAL PROCESSES.

TECHNICAL DATA
- power supply: 230/400V +10%, -15%, f=50Hz
- rated force: 6,3 or 10 kN
- linear velocity: 25 or 40 or 63 or 126 mm/min
- travel: 25 or 40 or 63 or 200 mm
- ambient temperature during operation: -25°C…+70°C
- protection degree: IP54 wg PN-EN60259..2002(U)
- duty type: S4 - 25%, 630c/h FI acc. to PN-92/M-42011
- lubrication: semi-liquid grease ALVANIA EP (LF) 0 Shell production
- humidity: up to 80%
- vibrations: 10…55Hz,vibration frequency shouldn't exceed 7,1mm/s
- mass: ~40kg
