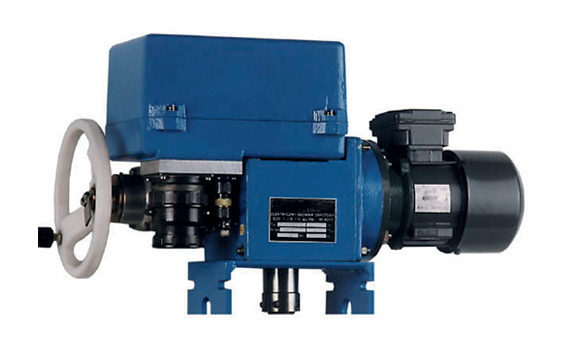

Tip: ESO-03

THE ELECTRIC ROTARY ACTUATORS TYPE ESO-03- (CONSTANT-SPEED) ARE
DESIGNED FOR DRIVING OF CONTROL CLOSING COMPONENTS AND OTHER
DEVICESIN AUTOMATIC CONTROL SYSTEMS.

TECHNICAL DATA
- power supply: 230/400V +10%, -15%, f=50Hz
- rated torque: 50Nm
- angular velocity(positioning speed): 10 or 25rpm
- ambient temperature during operation: -25°C…+55°C
- protection degree: IP54, acc. to PN-EN60259..2002(U)
- duty type: S2 - 15min and S4 - 25%, 630 c/h, acc. to PN-92/M42011
- lubrication: semi-liquid grease ALVANIA EP (LF) 0 Shell make
- relative humidity: up to 95%
- vibrations: V2, acc. to PN-91/M-42020
- mass: ~25kg

TWO-WIRE ANGULAR ENCODER
- power supply: 12…36V DC (recommended 24V DC)
- output signal: 4…20mA
- range setting: 50 ...100% (for analog angular encoder),20...100% (for digital angular encoder)
- maximum load resistance:for supply 24V DC - 500W

MICROSWITCHES: Type: 83.133
- rated power supply: 250V, 50…60Hz or 30V DC
- rated switching current: 2.5A
- minimal switching voltage: 10V
- minimal switching current: 20mA
