Tip: ESW-16

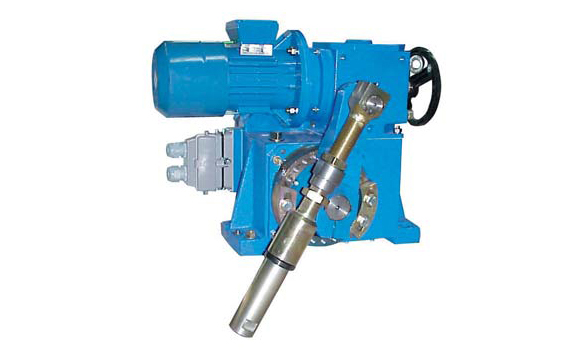

THE ELECTRIC PART-TURN ACTUATORS TYPE ESW-16- ARE DESIGNED
FOR DRIVING OF CONTROL CLOSING COMPONENTS (VALVES, GATE VALVES, GATES) AND OTHER DEVICES WHEREIN LARGE FORCES ARE REQUIRED. THEY CAN BE USED AS FINAL CONTROL ELEMENTS IN REGULATING AND CONTROL SYSTEMS.

TECHNICAL DATA
- power supply: 230/400V +10%, -15%, f=50Hz
- rated torque: 630 or 1000 or 1500 or 2000Nm
- angular velocity(positioning speed): 0.24 rpm
- rotation angle: 90°or 120°or 150°
- ambient temperature during operation: -25°C…+55°C special version -40°C…+55°C
- protection degree: IP54, acc. to PN-EN60259..2002(U)
- duty type: S4 - 25%, 320c/h FI or S2 15 min,acc.to PN-92/M-42011
- lubrication: HIPOL 15 oil, semi-liquid grease, ALVANIA EP(LF), Shell make
- relative humidity: up to 80%
- vibrations: 10…55Hz,vibration frequency should not exceed 7.1mm/s
- mass: ~100kg

TWO-WIRE ANGULAR ENCODER
- power supply: 12…36V DC (recommended 24V DC)
- output signal: 4…20mA
- range setting: 50 ...100% (for analog angular encoder),20...100% (for digital angular encoder)
- maximum load resistance: for power supply 24V DC - 500W

MICROSWITCHES: Type: 83.132, 83.133
- rated power supply: 250V, 50…60Hz or 30V DC
- rated switching current: 2.5A
- minimal switching voltage: 10V
- minimal switching current: 20mA
