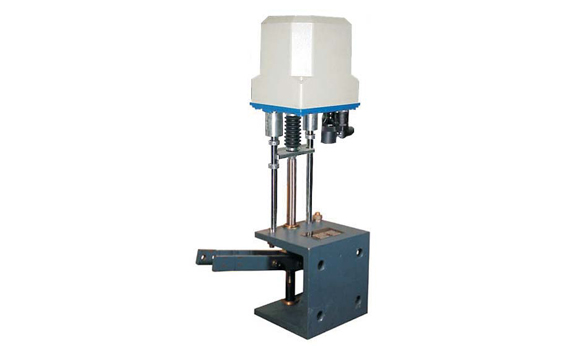

Tip: ESW-17

ELECTRIC PART-TURN ACTUATORS type ESW-17 (CONSTANT-SPEED) ARE
DESIGNED FOR DRIVING OF REGULATION COMPONENTS AND OTHERS, IN
CONTROLSYSTEMSOFHEAT ENGINEERINGANDAIR CONDITIONING.

TECHNICAL DATA
- power supply: 230/400V +10%, -15%, f=50Hz
- rated moment: 160…250Nm
- angular velocity: 30°/min
- angle of rotation: 30°
- working temperature: -25°C…+55°C
- protection degree: IP54, acc. to PN-EN60259: 2002(U)
- duty type: S2 - 15min and S4 - 25%, 630c/h acc. to PN-92/M-42011
- mass: ~9kg

MICROSWITCHES: Type: 83.133.54 ER14.1
- rated power supply: 250V, 50…60Hz or 30V DC
- rated switching current: 2.5A
- rated thermal current: 11A
- minimal switching voltage: 10V
- minimal switching current: 20mA
