Szabályozó

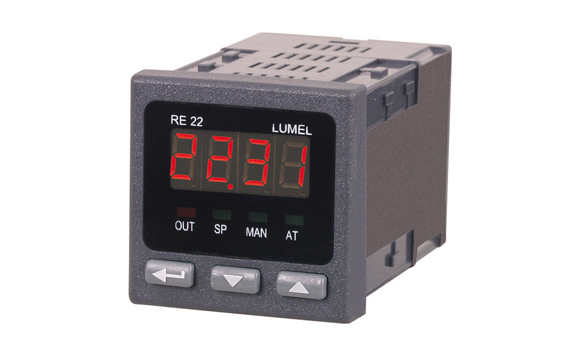

Tip: RE22

Digital controller RE22 type is destined to control temperature in furnaces, dryers, injection moulding machines and others. input: universal (thermocouples, resistance thermometer, analog standard signals),
control algorythm: on/off, with histerezis, PID,
output: relay, binary 0/6V,
manual setting of PID parameters or by means of the autoadaptation,
limitation of set point change setting,
supply: 230 V a.c., 110 V a.c., 24 V a.c.,

External dimensions: 48 x 48 x 93mm
