Elektroautomatika Ipari és Kereskedelmi Kft.

Szabályozó

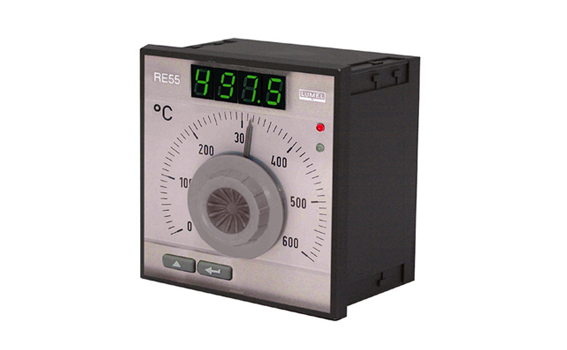

Tip: RE55

The RE55 controller is a microprocessor controller with an analog setting and digital measurement of the measured value.
The controller controls the temperature in objects through switching on and off the electrical control device, in accordance with the definite set point by
the controller.
The controller co-operates directly with RTD and TC temperature sensors. The controller is destined to control temperature in plastics industry,
food and dehydration industries, and everywhere when it is necessary to stabilize temperature changes.

Basic technical specifications:
input: thermocouples: J, K, S, resistance thermometers Pt100
temperature control range: - 50...1600°C,
basic error: 1%,
control algorythm: ON/OFF with histeresis, P, PID, PID with autoadaptive programme,
output: relay, transistor OC type,
supply voltage: 85...253 V AC/DC,

External dimensions: 96 x 96 x 80mm
