Manométerek
Tip: 6032

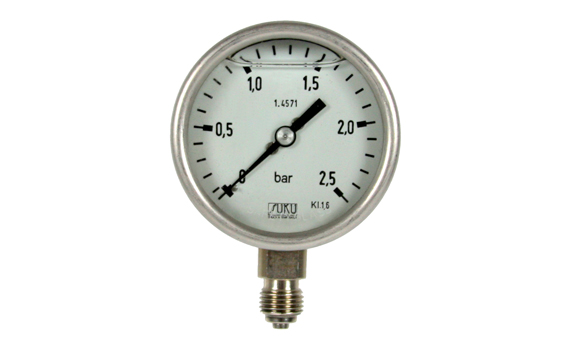

Type 6032, Bourdon tube pressure gauge with glycerine filling NS63, all stainless steel, connection bottom

Pressure gauge with Bourdon tube all stainless steel 1.4301
Accuracy: 1,6 (> 600 bar accuracy 2,5)
Connection: bottom
Glycerine filling
Measuring range: 0...0,6 bar up to 0...1000 bar negative or positive overpressure
Connection size: G 1/4 B

These all stainless steel pressure gauges are designed for harsh conditions and to meet the stringent demands of pressure measurement in production plants of the chemical industry and in other comparable industrial sectors. The use of high quality materials such as stainless steel, both for the measuring system and case, provides resistance to aggressive media and environments.

The glycerine filling provides smooth pointer motion, thus ensuring an accurate reading even under extreme load and strong vibration conditions.
