Manométerek
Tip: 7791

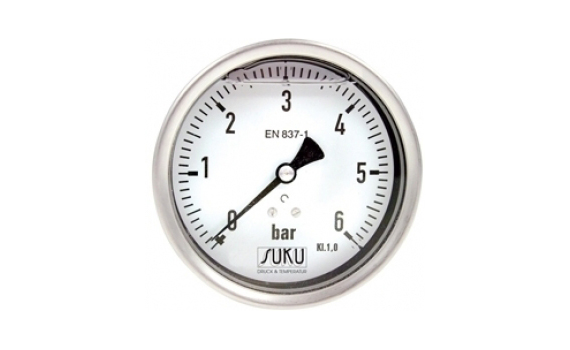

Type 7791, Bourdon tube pressure gauge with glycerine filling NS100, connection back

Pressure gauge with Bourdon tube according EN 837-1
Case stainless steel 1.4301 with Blow out
Accuracy: 1,0
Connection: eccentric back
Measuring range: 0...0,6 bar up to 0...1600 bar
Connection size: G 1/2 B, brass

For measuring tasks where strong mechanical vibrations or pressure pulses may arise. The glycerine filling provides smooth pointer motion, thus ensuring an accurate reading even under extreme load and strong vibration conditions.

Furthermore, the lubricating action of the glycerine offers an effective counter against extreme wear.
