Voltmeters

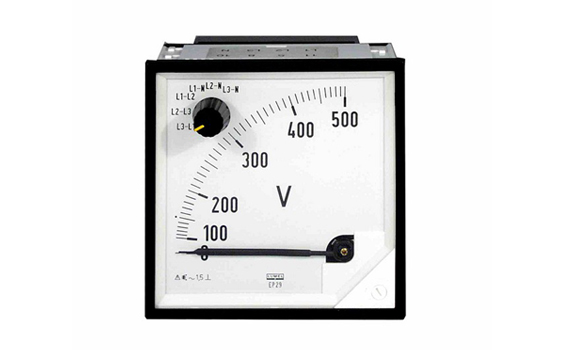

Tip: EP27 i EP29

Voltmeters equipped with a change-over switch EP27 and EP29 type are destined to measure phase-to-phase and line-to-line voltages in low voltage power networks. A switch installed on the left side of the dial enables the selection of the measured voltage.
They are particularly useful for measurements in electrical machine safeguard systems.
direct measuring ranges: U = to 500 V,
measuring ranges with voltage transformers: U=100 V or 110V,
fixing in the panel.

External dimensions:
72 x 72 x 65mm (EP27 type)
96 x 96 x 65mm (EP29 type)
