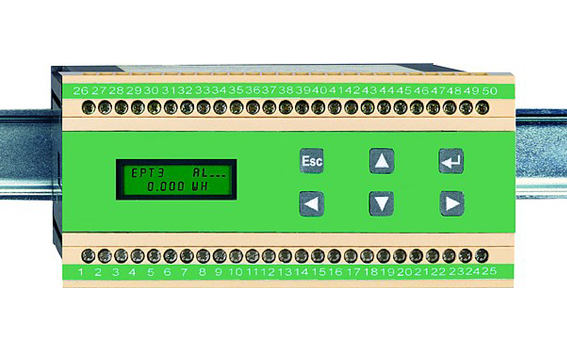

Tip: P10

Power network parameter transducer P10 and P10A type is destined to measure: power network parameters in 3-phase 3-wire or 3-phase 4-wire, balanced or unbalanced network systems e.g.: rms a.c. voltage and a.c. current, active, reactive and apparent power, active, reactive and apparent energy, different power factors, frequency, average active power (e.g. 15 min), cosj, tgj,
harmonics, up to 25-th,
THD factor.

Transducer enables monitoring of the maximal power, measurement of max. and min. values with a time marker.
Transducer is commonly used in computer systems, e.g. with LUMEL-ENERGY program.
input: programmable
100 V, 400 V,
1 A, 5 A a.c.,
3 inputs to control energy counter tariffs,
output:
P10 type - 4 relay outputs, 4 analog outputs 0...20mA, 4...20mA
P10A type - 4 relay outputs, 4 analog outputs +/-5mA and on request +/-20mA,
digital output RS485 - with MODBUS protocol,
1 or 3 pulse passive output,
supply: 85...253 V d.c. or a.c 40...400Hz,
display field: LCD 2 x 16 signs.

External dimensions: 152 x 73 x 118mm
