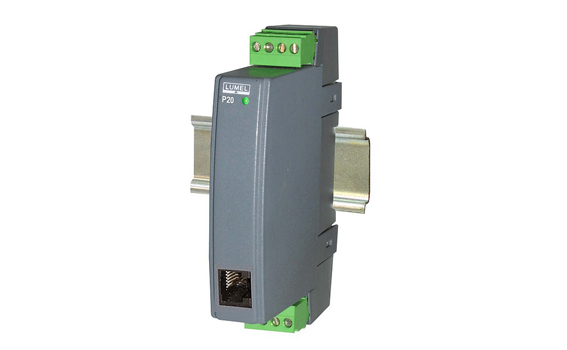

The P20 programmable transducer is destined to convert the temperature, resistance, voltage from shunt and standard signals into a standard constant-current or constant-voltage signal.
The transducer output signal is galvanically insulated from the input signal and the supply.
input: programmable universal input,
output: 0/4...20mA, 0...10V.
The transducer is fully configurable through the PD14 programmer and free LPConfig software.
By means of the programmer one can change
averaging time of the measurement,
rescale the analog output acc. to the individual output characteristic,
read out the measured value.
External dimensions: 22,5 x 120 x 100mm
