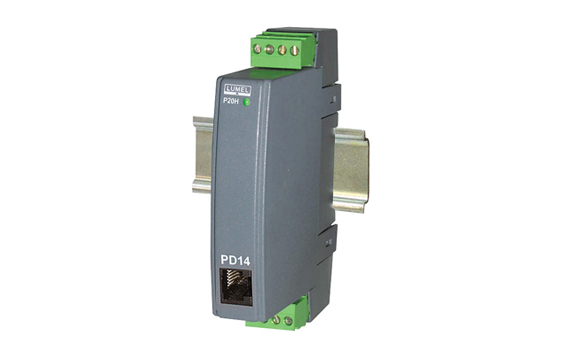

Tip: P20H

Transducers of P20H series are applied for the continuous conversion of d.c. voltage and d.c. current into a standard d.c. current, d.c. voltage signal or RS-485 digital signal.Input:
-100…0…+100 V, -600…0…+600 V d.c.,
-1…0…+1 A, -5…0…+5 A d.c.,
Output:: 0/4…20 mA, 0…10 V or RS-485 with MODBUS protocol.
Output signal galvanically isolated from the input signal and the supply.
Possible programming of following parameters through the PD14 programmer and the free LPCon program:
measurement averaging time,
conversion characteristic,
preservation of the output signal at overflows,
transmission parameters through RS-485.
Possible rescalling of the analog output acc. to the individual output characteristic.
Accuracy class: 0.2
Supply voltage: 85…253 Va.c. (45…65 Hz) or d.c.20…40 Va.c. (45…65 Hz) or d.c.
Overall dimensions: 22.5 x 120 x 100 mm.
