Villamos távadók

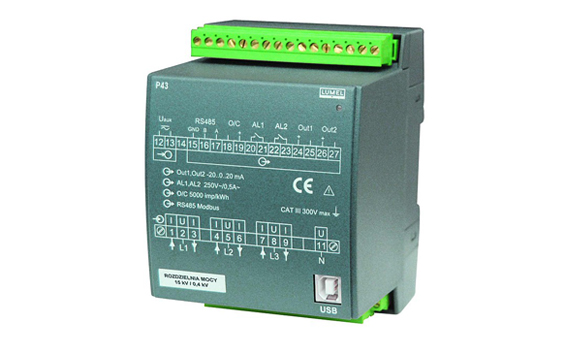

Tip: P43

P43 is destined for the conversion of 3-phase, 3 or 4-wire power network parameters, in balanced or unbalanced systems.Inputs signals:
current: 1A or 5A
voltage: 100V or 400V
Outputs
4 relays (signaling measured quantity overflows), without analog outputs
2 relays, 2 analog outputs
4 analog outputs, without relay outputs
Pulse output (control of 3-phase active energy consumption),
RS-485 and USB interfaces with Modbus protocol,
Built-in memory for the 15 minutes' power profile,
Storage of maximal and minimal values,
Galvanic isolation,
Programmable current and voltage transformer ratios,
Transducer programming realized by means of a free delivered LPConfig software,
Overall dimensions: 90 x 120 x 100 mm.
