Villamos távadók
Tip: P11; P13; P13B

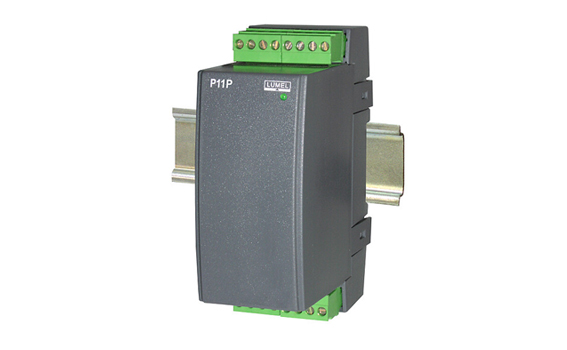

Analog measuring transducer - P11P type is destined for conversion into a standard analog signal active power in 1-phase network. Output isignal is galvanically isolated from the input signal and supply. input: 1 A (X/1 A), 5 A (X/5A), 57,7...690 V, X/100V,
output: ± 0...4/20 mA, ± 0...10V,
fixing on the DIN rail

External dimensions: 45 x 120 x 100mm

Analog measuring transducer - P13B type is destined for conversion into a standard analog signal reactive power in 3-phase network. Output isignal is galvanically isolated from the input signal and supply. input: 1 A (X/1 A), 5 A (X/5A), 57,7...690 V, X/100V,
output: ± 0...4/20 mA, ± 0...10V,
fixing on the DIN rail

External dimensions: 45 120 x 100mm

Analog measuring transducer P13P type is destined for conversion into a standard analog signal active power in 3-phase 3-wire network.
Output signal is galvanically isolated from input signal and supply.
input: 1 A (X/1 A), 5 A (X/5A), 57,7...690 V, X/100 V,
output:± 0/4...20mA, ±0...10V
fixing on the DIN rail.

External dimensions: 45 x 120 x 100mm
