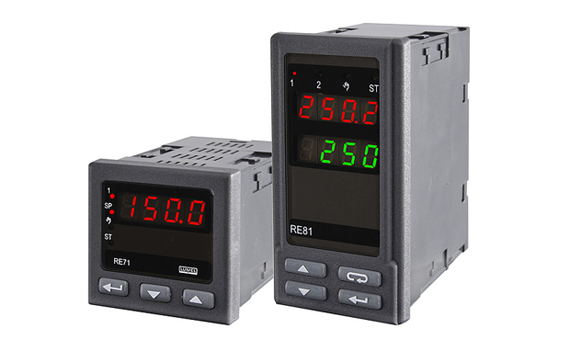

Digital controller RE71 type is destined to control temperature in furnaces, dryers, injection moulding machines and others.
Control acc. to the PID or ON/OFF algorithm.
Direct co-operation with:
resistance thermometer (Pt100)
or thermocouple (J, K, S)
Automatic selection of PID parameters (acc. to the new innovative SMART PID technology).
SMART PID Technology:
self-acting and precise selection of PID settings,
effective control algorithm,
easy and simple solution for technical service,
lack of overshoots or small overshoots for a large range of objects in the automatic process of PID parameter selection.
One control output:
relay output or
voltage output for SSR relay control.
Manual control mode.
IP65 protection level
External dimensions: 48 x 48 x 93mm
