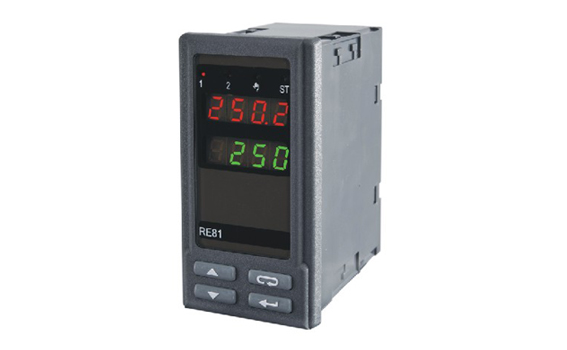

Digital controller RE81 type is destined to control temperature in furnaces, dryers, injection moulding machines and others.
Control acc. to:
Direct co-operation with:
resistance thermometer (Pt100)
or thermocouple (J, K, S)
Automatic selection of PID parameters (acc. to the new innovative SMART PID technology).
SMART PID Technology:
self-acting and precise selection of PID settings,
effective control algorithm,
easy and simple solution for technical service,
lack of overshoots or small overshoots for a large range of objects in the automatic process of PID parameter selection.
2 configurable control outputs:
relay output or
voltage output for SSR relay control
Configuration by means of keys or PD14 programmer and free delivered LPConfig program
Error signaling by means of messages
IP65 protection level
External dimensions: 48 x 96 x 93mm
