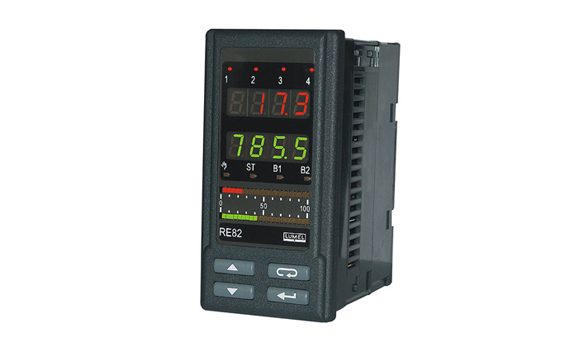

The RE82 controller is destined for the temperature control in plastics, food, dehydration industries and everywhere when the stabilization of temperature changes is necessary.
Universal measuring input (thermocouples, resistance thermometers or analog signals),
Input: logic and auxiliary analog input,
Output: relay, transistor of OC type, continuous or binary for SSR control,
On/off with histeresis,
15 programs with 15 segments in each,
valve control (step-by-step control),
Automatic selection of PID parameters (acc. to the new innovative SMART PID technology),
self-acting and precise selection of PID settings,
effective control algorithm,
easy and simple solution for technical service,
lack of overshoots or small overshoots for a large range of objects in the automatic process of PID parameter selection.
Soft start function,
Alarm latch function (LATCH) applied in safety controllers,
Measurement of heater current and heater burning control or short-circuit of the control element (e.g. SSR),
IP65 protection grade,
External dimensions: 48 x 96 x 93mm.
See also our new RE72, RE71 and RE81 controllers
