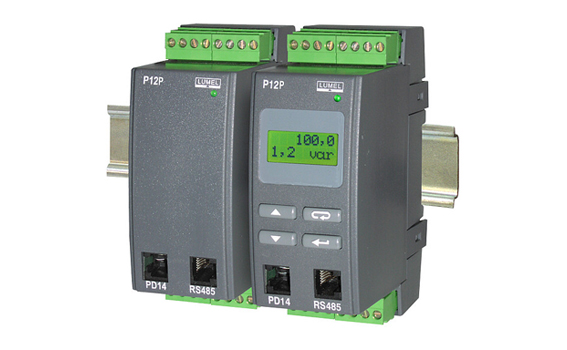

Programmable transducer P12P type is destined to convert single-phase network parameters: a.c. voltage and a.c. current, frequency, active, reactive and apparent power,
power factor cosj, active power to reactive power ratio, phase shift angle,active, reactive and apparent energy into a digital or standard current or voltage signal. The output is galvanically isolated from the input and supply. The insulation exists also between the current and voltage input.
The P12P type transducer has programmable measuring and auxiliary functions.
The parameter modification is possible through the PD14 programmer, the RS-485 interface or from the keyboard.
The transducer is commonly use in computer systems, e.g. with LUMEL-ENERGY program.
1 A (X/1 A), 5 A (X/5A),
57,7...690 V, X/100 V,
output: programmable - digital RS-485 MODBUS protocol, analog, 2 relays,
display: LCD 2 x 8 signs,
supply 253 V a.c./d.c. or 20...50 V a.c./d.c.,
available execution: with display and without display.
Next to programmable measuring function P12P type transducer has programmable auxiliary function:
conversion of measuring value into an output signal on the base of the individual linear characteristic,recalculation on the input quantity into any indication on the base of the individual linear characteristic,
programming of alarm outputs,
signalling of the measuring range exceeding,
recording of any input signal in programmed segments of time or event recording,
programming of the indication resolution,
preview of all measuring values and set parameter values,
programming of voltage and current ratio,
zeroing of energy counters,
storage of all counter states in case in case of a decay of the supply voltage,
automatic setting of the decimal point,
storage of maximal and minimal values of all input quantities,
programming of the time and kind of measurement averaging: arithmetic mean, walking window,
display of the unit,
service of the RS-485 interface in the MODBUS protocol, both in ASCII either in RTU mode,
data protection by means of a password.
External dimensions: 45 x 120 x 100mm
