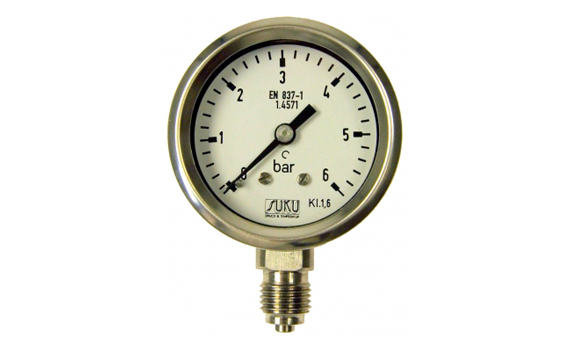

Type 6010, Bourdon tube pressure gauge NS40, chemical execution, fillable, connection bottom
Pressure gauge with Bourdon tube
all stainless steel 1.4301
Accuracy 1,6 (at 600 bar accuracy 2,5)
0...1 bar up to 0...600 bar
negative or positive overpressure
G 1/8 B or 1/8" NPT
These all stainless steel pressure gauges are designed for harsh conditions and to meet the stringent demands of pressure measurement in production plants of the chemical industry and in other comparable industrial sectors. The use of high quality materials such as stainless steel, both for the measuring system and case, provides resistance to aggressive media and environments.
